Grid Texture Drawer (Experimental)
Grid Texture Drawer is a grid based tool for Blender Texure Editor. You can draw Lines, Rectangles, and Polygons on texture map directly.
Start the tool inside Texture Editor, draw the shapes, then press Q key to save changes and exit.

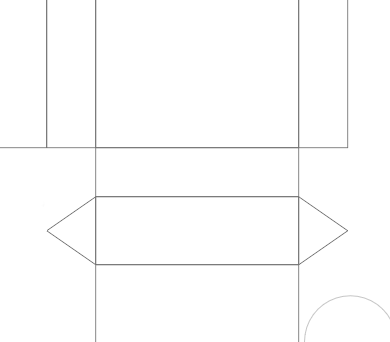

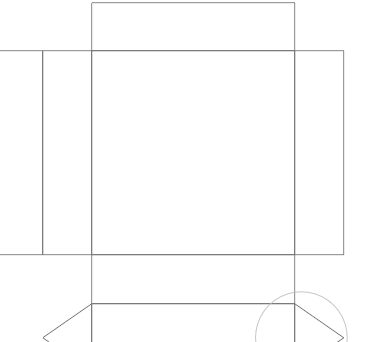

Using this tool, you can draw lines and sci-fi style greebles directly in blender.
The Grid Plane is snapping so it is easy to draw things with good alignment.
You can Ctrl + Click on the polygon edges in UV viewport, it will align the grid plane to that edge.
Blender has Texture Editor and basic line drawing brush, but it has limited functionalities and no grid snapping.
This tool adds additional drawing abilities to Blender Texture Editor.
Update
Version 1.1.3
- Added Line Thickness and Grid Size on the screen text
Version 1.1.1, 1.1.2
- Fixed a bug for Undo after commit (there is limitation for image texture undo)
Version 1.1.0
- Fixed the bug of blocking menu bar (change color)
- Now the tool remember grid size and line thickness after each run !
Usage

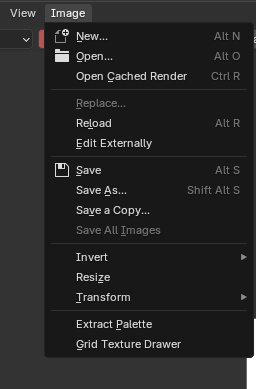

Switch to Blender Texture Editor, then you will see Grid Texture Drawer at the bottom of "Image" menu.
Note : You should have already UV unwrap the model, and added Image Texture map. (eg: size 2048 png white color)
You can run this tool directly on Image menu, or add it to Quick Favorite menu for quick access.
After starting the tool, blender original brushes are "Blocked" temporarily.
You are using this tool's functions for drawing until you press Esc key or Q key.
However, you can change brush color, and it will be used in the tool.
You can see the keys function on the on-screen menu :
V key: Draw Line, B key: Draw Box
N key: Draw Polygon
Space key: Stop polygon draw
F key: Fill color mode (toggle)
Ctrl + Click: Set main-edge for grid
Ctrl + Z: Undo
Ctrl + Mouse-scroll: change grid size
Shift + Mouse-scroll: change line width
H key: Hide this help
Esc key : Exit without save
Q key : Exit and Save
It is a free addon ! Hope that it is useful in your workflow !
